Champion

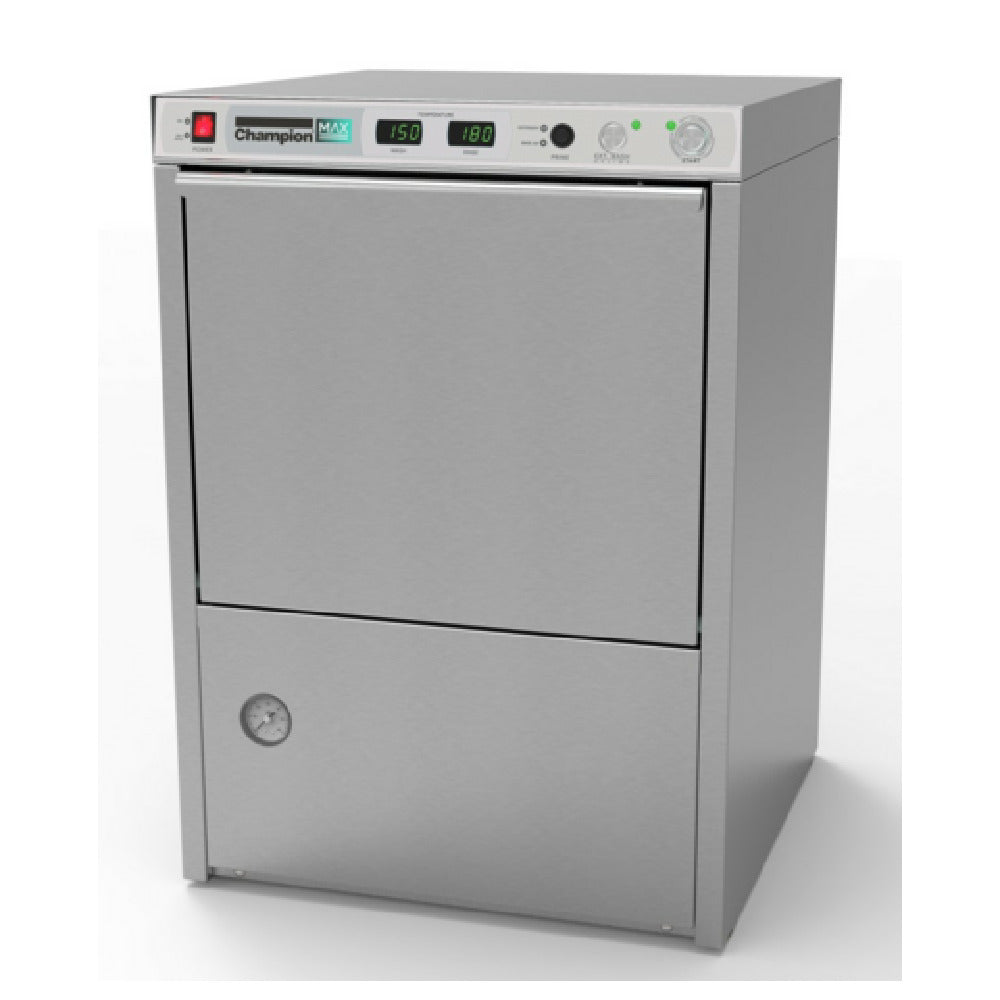

Champion UH130B MAX Dishwasher Undercounter 24"W X 25"D X

Champion UH130B MAX Dishwasher Undercounter 24"W X 25"D X

Champion, UH130B MAX, Dishwasher, undercounter, 24"W x 25"D x 33-3/4"H, high temperature sanitizing, Multi Level Rack System, with StemsSure™ soft start to protect glasses & dishes from chipping & breaking, (25) racks per hour capacity, 288 second cycle, top mounted controls with prime switch, 15-3/4"H door opening, door safety switch, advanced digital thermometer monitoring, stainless steel top & side panels, quiet double-wall construction, detergent & rinse aid pumps, pumped drain, built-in electric booster for 180°F final rinse water (standard 70°F/39°C rise), rinse sentry - extends the cycle time to ensure 180°F final rinse, low-water tank heat protection, automatic tank fill, (1) peg rack, (1) flat rack, 1 HP wash pump motor, fill & dump operation, Multi-Power - includes: Multi-Volt & Multi-Phase (Allows for infield conversion to 208-240 volt and/or single to three phase with ease), NSF, cETLus


Specification

Manufacturer Champion
Model Number UH130B MAX
Manufacturer Part # UH130B MAX
Cabinet base Fully Enclosed
Rack Size 20" X 20"
Construction Stainless Steel
Tank Heat Electric
Temperature High Temp With Booster
Height 33.75"
Width 24"
Depth 25"
Weight 215 lbs
NSF Approved Yes
cETLus Approved Yes
ENERGY STAR Approved Yes
